4 Tier Steel Storage Rack 200kg Per Shelf — Cold Rolled Steel, 4 Reinforcement Ribs, Boltless Design
You’ve been looking at steel racks for a while. Maybe you already noticed — two racks that look almost identical in photos can feel completely different after a few months of use. One stays solid. The other sags in the middle, the coating chips, and every time you adjust a shelf you end up unscrewing half the frame. Not because the design is different. Because the steel is thinner, the shelves are flat instead of ribbed, and the coating was just a quick paint job.
This 4 tier steel storage rack with 200kg per shelf is the one that stays solid.
4 Tier Steel Storage Rack 200kg Per Shelf Specs
| Item | Detail |
|---|---|
| Tiers | 4 (custom 3/5/6 available) |
| Load per shelf | 100-200kg |
| Material | Cold rolled steel |
| Connection | Butterfly clip, no screws |
| Finish | Acid wash → phosphate → sand blast → electrostatic powder coat |
| Frame type | Main frame + auxiliary frame system |

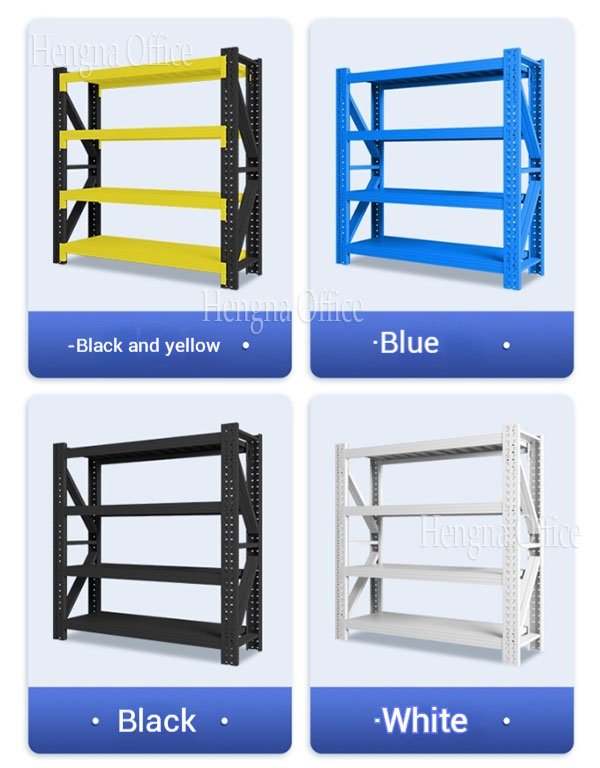

| Colors | Blue / White / Black / Black-Yellow |
| Packing | KD, moisture film + corner protectors + sorted bags |
| Certification | CE |
Why 200kg per shelf doesn’t mean it’ll bend
Two things make this rack hold 200kg without warping.

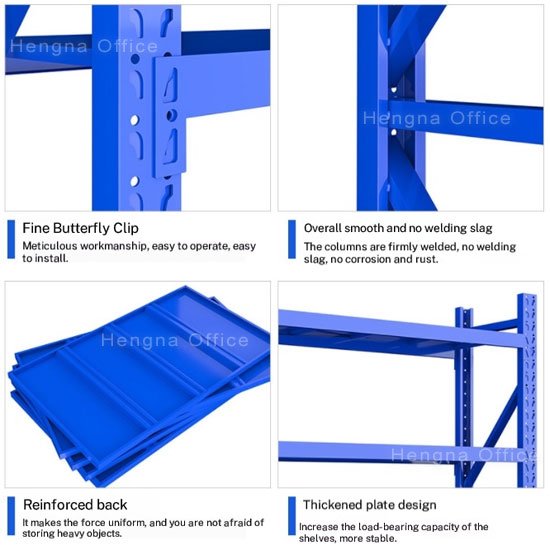

First, the shelves have 4 reinforcement ribs pressed into the underside. They’re not flat sheets with folded edges — each shelf has 4 longitudinal grooves that act like hidden beams. Weight spreads across the ribs into the beams and uprights. Flat shelves without ribs start dipping in the middle after a few months under load. The ribs stop that from happening.
Second, it’s cold rolled steel, not hot rolled. Cold rolled is smoother, more dimensionally accurate, and harder. Hot rolled is cheaper — for the manufacturer. Tolerances are looser, the surface is rougher, and within a year the uprights may start to wobble where they join. The cost difference per rack is small. The difference in lifespan is not.
The coating is four steps, not one
Cheap racks get a single coat of spray paint. It chips, it smells, it rusts from the first scratch. This rack goes through four processes: acid wash to strip mill scale and oil → phosphate bath to create a rust-inhibiting base layer → sand blasting to rough the surface so the coating bonds tight → electrostatic powder coating that fuses into a uniform shell at high heat. The result doesn’t chip, doesn’t rust, and has no chemical smell. It’s fine in cold storage and food zones.
Boltless assembly saves you time, not just screws
The butterfly clip is what sets this rack apart from traditional angle-iron racks. A standard screw-together rack has dozens of bolts. Two people spend a morning tightening them. Need to change a shelf height? Unscrew everything, move it, screw it back. One adjustment costs you an hour.
With the butterfly clip system: align the clip with a diamond hole on the upright, push it in, done. One hand, two seconds, no tools.

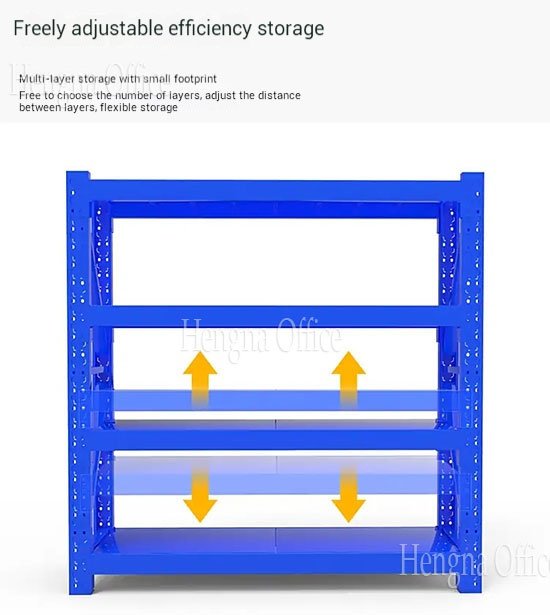

Each shelf adjusts independently. Put boxes on one level today, bulky bins tomorrow — lift the shelf out, move it to a different row of diamond holes, snap it back in. The uprights have two rows of diamond-shaped holes spaced tightly, so you get fine height adjustment across the full range.
Main frame + auxiliary frame saves column cost
One main frame (uprights on both sides) works as a standalone unit. When you line up multiple racks — say 10 in a row — you use 1 main frame plus 9 auxiliary frames (uprights on one side only). That’s 9 fewer sets of uprights than buying 10 main frames. The savings add up fast.
The rack ships KD (knocked down). Each column, shelf, beam, and clip is wrapped in moisture-protection film, corner-protected, and bagged by part type. Ship by sea or air — it arrives without rust and without dings.
Where it works
Warehouse storage for raw materials, work-in-progress, and finished goods. Logistics centers where rack rows need to expand. Workshop parts storage — the black-yellow option meets industrial safety color standards. Cold rooms and humid environments where paint would fail but four-step powder coating won’t.
How it compares
Boltless vs screw-together racks — butterfly clip snaps in, no tools, heights change in seconds.
Ribbed shelves vs flat shelves — ribs prevent sagging under sustained 200kg load.
Four-step powder coat vs single-layer paint — won’t chip, won’t rust, no odor.
KD pack vs welded frames — saves 30-50% on shipping, arrives undamaged.
FAQs
What’s the MOQ? Standard blue: single unit. Custom colors or OEM: minimum quantity applies.
Do you quote FOB or CIF? FOB Qingdao/Tianjin, CIF, and DDP — your port, your terms.
What’s the warranty? 2 years standard. Free replacement for structural defects.
How is it packed? Each part wrapped in moisture film, corners protected, sorted into labeled bags. Ready for sea freight.
Can I get OEM? Yes. Silk-screen logo, custom packaging, custom manuals, custom colors, non-standard sizes. We have export experience and know what overseas buyers need.
Lead time? Standard: 7-15 days. OEM orders: 30-45 days depending on color and quantity.
About us
Luoyang Hengna Office Furniture Co., Ltd. — manufacturer-direct supply, 9 years in steel rack export, CE certified, own trademark. Quote within 24 hours. Orders we can do, we deliver. Orders we can’t, we tell you straight.
Send a message or email. You’ll get a quote and lead time within 24 hours.
