Boltless Butterfly Clip Steel Shelving — Snap-On Assembly, No Tools Needed, Adjustable Every Level
First time assembling a steel rack?
You open the box. Parts everywhere. Find a wrench. Sort the screws. Two people on the floor — left upright first, then right, then crossbeams, bolt by bolt. Halfway in you realize the beam is backwards. Undo it. Start over. Two hours later your back hurts and your palms have wrench marks. You step back to look — the third shelf is too low. Boxes won’t fit. Want to fix it? Take it all apart.Next time you buy shelving, you type “boltless,” “no screws,” “tool-free assembly” into the search bar. Those search terms tell the story. You’re done with screw-together racks.
How the butterfly clip works

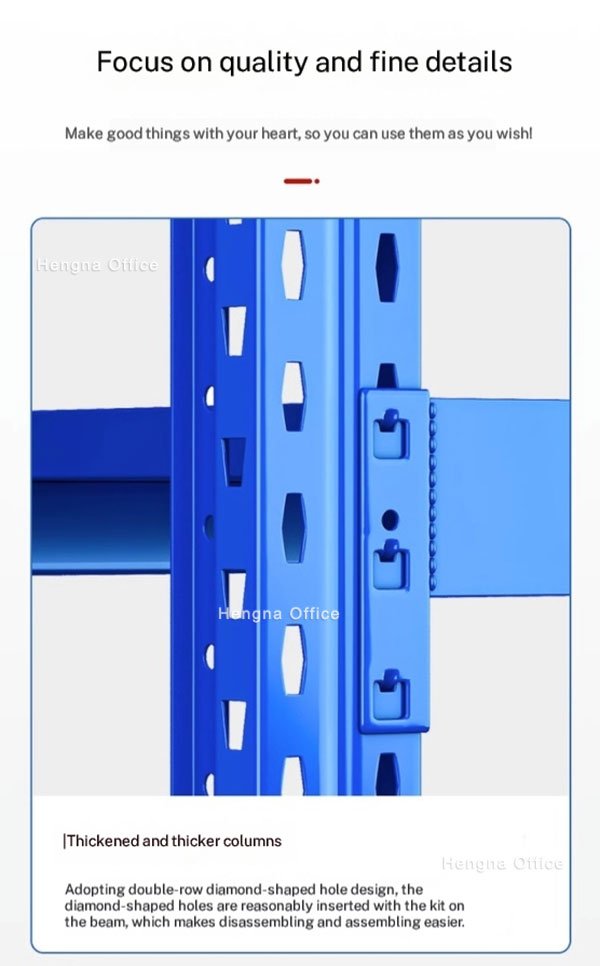

The uprights have two rows of diamond-shaped holes punched through both faces. The butterfly clip is a metal fastener — one end hooks onto the crossbeam, the other snaps into a diamond hole on the upright. Push down, hear a click, locked. It’s a self-tightening mechanism: the heavier the load, the tighter it grips. To remove, lift the clip up and the whole beam-and-shelf assembly comes off.
Crossbeams, shelves, diagonal braces — all connected this way. Two people assemble one 4-tier unit without rushing in about half an hour. Someone who’s done it before, twenty minutes. Disassembly takes maybe two minutes flat.
When your lease is up and you’re moving warehouses, screw-together racks make you want to abandon them on the dock. With butterfly clips, you pull everything apart, bag the hardware, load it up. The rack moves with you. When e-commerce peak season hits and you need two more bays by tomorrow, they arrive KD-packed and go up same day. When your inventory changes — boxes today, drums tomorrow — screw racks cost you half a morning per height adjustment. Butterfly clips: ten seconds per shelf.

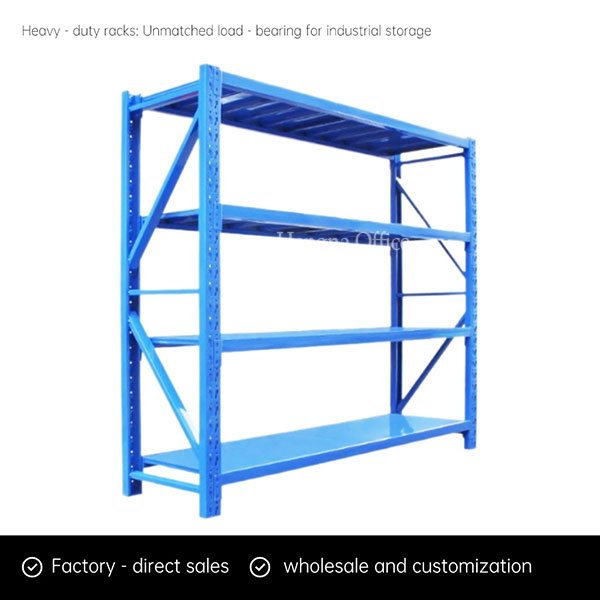

Boltless Butterfly Clip Steel Shelving — Assembly specs
| Item | Detail |
|---|---|
| Connection | Butterfly clip, zero screws |
| Solo assembly | 30-45 minutes |
| Two-person assembly | 20-30 minutes |
| Shelf height adjustment | Independent per shelf, lift-and-snap |
| Load per shelf | 100-200kg |
| Material | Cold rolled steel |
| Surface finish | Acid wash → phosphate → sand blast → electrostatic powder coat |
| Packing | KD, moisture film + corner protectors + sorted bags |
| Colors | Blue / White / Black / Black-Yellow |
What’s in the box

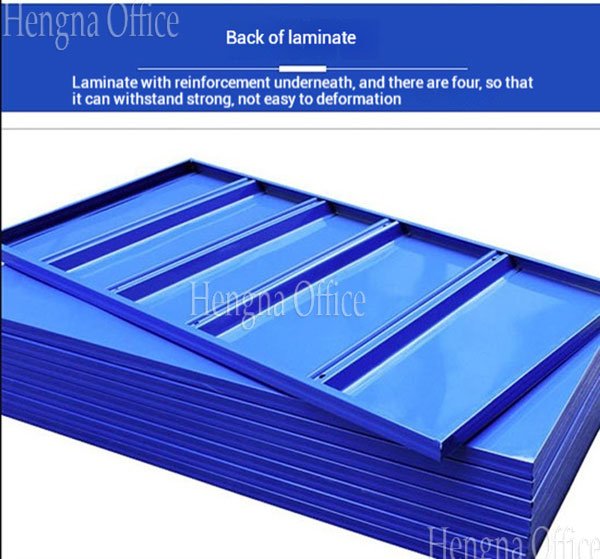

Two uprights — thick cold rolled steel, double-row diamond holes, welds ground smooth. Four crossbeams — clip onto uprights, shelves rest directly on top. Four shelf panels — underside has 4 pressed longitudinal reinforcement ribs. Not flat metal with folded edges. The ribs act like hidden beams, load spreads evenly, no sagging in the middle. Two diagonal braces — cross-bolted across the back, stops the rack from swaying. Butterfly clips for every connection point, four base plates for floor contact. That’s the whole kit.
The other stuff
100-200kg per shelf. Cold rolled steel underneath — harder, more dimensionally accurate, more stable than hot rolled plate. Hot rolled may look thick but tolerances are loose and joints loosen within a year. Surface goes through all four steps: acid wash, phosphate, sand blast, electrostatic powder coat. Not a single spray-paint layer. No chipping, no rust, no chemical smell. Four colors: blue, white, black, black-yellow.
Side by side with a screw-together rack
Assembly — butterfly clip snaps in and self-tightens. Screws rely on friction and loosen over time.
Height adjustment — lift a butterfly clip, move to new holes, snap. Ten seconds. Screw rack: remove bolts, move beam, re-bolt. Ten times the work.
Disassembly — butterfly clip lifts off. Screws unscrew one by one, and stripped threads mean replacement hardware.
If you never change shelf heights, never move, and don’t mind spending a morning with a wrench — an angle-iron rack works. If any of those things don’t apply, the butterfly clip is what you’re looking for.
FAQs
How long to assemble? Two people, 30 minutes without rushing. One person can do it, just takes a bit longer.
Is it stable? Yes. Self-tightening clips grip harder under load. Cross-bracing in the back stops sway. Cold rolled steel uprights aren’t hot rolled thin plate.
Does it rust? Four-step surface treatment. Customers using these in cold storage and humid warehouses haven’t reported rust issues.
How is it packed? KD. Moisture film wraps every upright and shelf. Corner protectors on edges. Parts sorted and bagged by type, labeled. Arrives clean whether by sea or air.
MOQ? Standard blue: single unit. Custom colors and OEM have minimums.
Lead time? Standard: 7-15 days. OEM orders: 30-45 days.
Can you do OEM? Silk-screen logos, custom packaging, custom manuals, custom colors, non-standard dimensions — yes to all. Nine years of export experience.
Luoyang Hengna Office Furniture Co., Ltd. — manufacturer-direct supply, 9 years in steel rack export, CE certified. Quote within 24 hours. Send a message or email. You’ll hear back same day.
