How to Store Large Format Drawings Properly: A Complete Guide to Flat File Cabinet Setup

Rolling up A0 blueprints and stuffing them into a cabinet destroys them. Three months later, the corners are cracked and the drawings are useless. This happens way too often in design firms.

We had a client clear out their archive last year and found 2018 construction blueprints completely destroyed. The core had crumbled, those were original design documents for a municipal project. They had to pay someone to redraw everything—200,000 RMB down the drain.

Large format drawings—A0 (841×1189mm), A1 (594×841mm)—engineering blueprints, construction plans, mechanical assembly drawings—are 4-8 times larger than standard A4 paper. Throw them around, roll them up, leave them in damp conditions, and they’re ruined in six months. Blueprint loss isn’t cheap. A designer spends a week on construction drawings. If they disappear, that’s money wasted. A mid-sized design firm produces 800-1,500 drawings per year. Bad storage costs tens of thousands, sometimes hundreds of thousands.

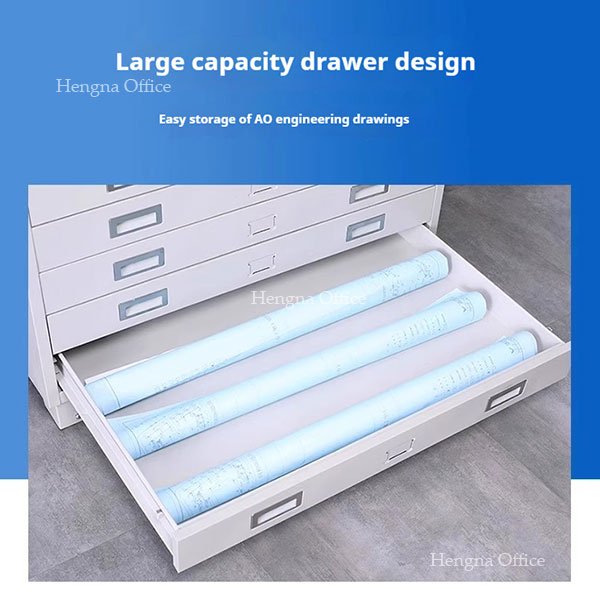

That’s what a flat file cabinet is for. A drawing cabinet designed specifically for large format drawings and blueprint storage. Horizontal drawers, 75mm high each, perfectly sized for one A0 drawing laid flat—no rolling, no folding. Each A0 drawing cabinet drawer has ball bearing slides that let you pull the drawer all the way out for easy access. Each drawer holds 30-50kg. Stack hundreds of drawings without problems.

How to Store Large Format Drawings Properly？

1. Measure Your Drawings Before Buying

Flat file cabinets come in two sizes. Pick the wrong drawing cabinet and it’s wasted money—too small and they don’t fit, too large and drawings rattle around, making finding them even slower.

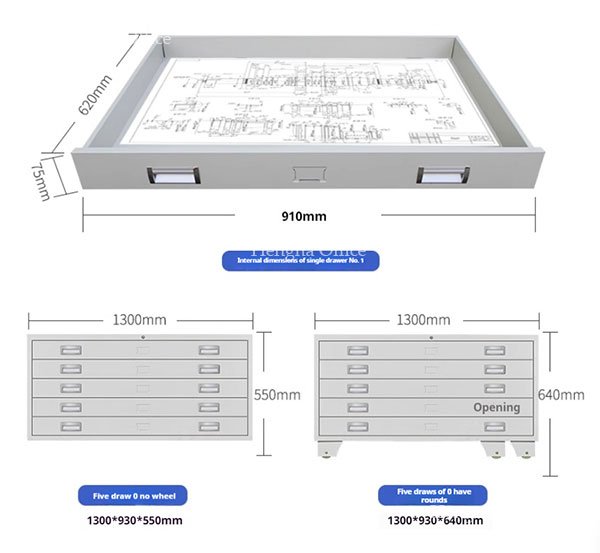

• Size 0 A0 drawing cabinet: External 1300×930mm, internal drawer 1205×860mm, holds A0 drawings (841×1189mm)
• Size 1 A1 drawing cabinet: External 1000×700mm, internal drawer 910×620mm, holds A1 drawings (594×841mm)

A0 drawings get Size 0, A1 drawings get Size 1. Design firms use A0 the most. Planning bureaus and mechanical factories often use A1. Some design firms buy both—Size 0 flat file cabinet for main drawings, Size 1 drawing cabinet for revision sheets.

Three height options for your drawing cabinet:

• Low flat file cabinet: 5 drawers, 550mm high, desktop height, good for next to drafting tables

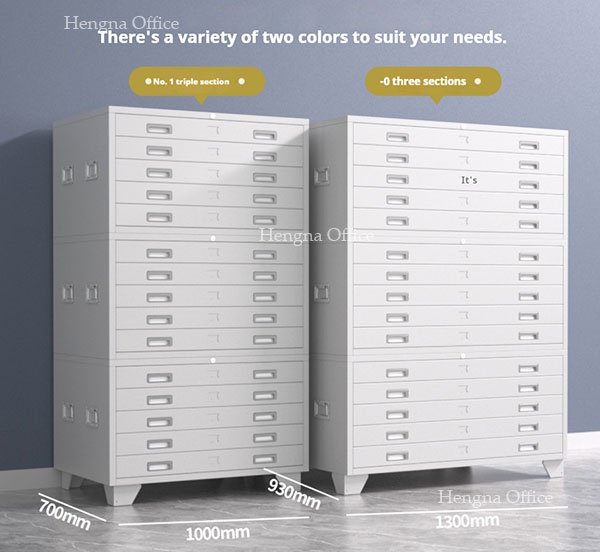

• Medium flat file cabinet: 5 drawers, 1200mm high, standing height, most common choice
• High flat file cabinet: 5 drawers, 1750mm high, maximum capacity, archive blueprint storage first choice

Design firms usually pick the medium flat file cabinet. Standing height means no bending over to reach drawings. Archives choose the high A0 drawing cabinet—5 drawers hold 2,500 A0 blueprints. Startups with fewer drawings pick the low drawing cabinet to save floor space.

2. Four Must-Have Features for Your Drawing Cabinet

1. Locking: Drawings contain unreleased client plans. Locks are mandatory on any flat file cabinet. Central lock is most convenient—one key for the whole cabinet, no need to key each drawer separately
2. Casters: Steel flat file cabinets weigh 200-400kg. Without wheels, they don’t move. Brake casters lock them in place once positioned. Mobile blueprint storage saves time when rearranging the office
3. Anti-tip device: High cabinets tip forward if all drawers are pulled out. This is non-negotiable for any drawing cabinet. It’s happened before—people getting crushed. We’ve seen the cases
4. Label holders: Each drawer has an external slot for labels on your drawing cabinet. Write down the drawing category. Finding drawings takes half the time. Most designers organize by project number or client name

If these four features aren’t all there, don’t buy it. Some cheaper drawing cabinet options skip anti-tip devices and locks. Buying them is like throwing money away. You’ll end up replacing it in a year.

3. Five-Step Flat File Cabinet Setup Guide

Step 1: Choose the location for your drawing cabinet Keep away from windows (sunlight yellows drawings) and AC vents (temperature changes cause warping). Leave 10cm from the wall for ventilation. Archives should pick north-facing rooms—sun-facing rooms have temperature fluctuations that make drawings warp. Humidity control is critical for blueprint storage.

Step 2: Level the flat file cabinet Uneven floors make drawers stick on your drawing cabinet. Use a level on the base and adjust the leveling feet. Test each drawer. If the floor is uneven, put shock-absorbing pads under the cabinet first.

Step 3: Install anti-tip anchors on your drawing cabinet High cabinets must be anchored to the wall with expansion bolts. This is required in design firms and archives. We’ve seen cases—during an earthquake, an unanchored A0 drawing cabinet crushed two people. This step can’t be skipped.

Step 4: Sort drawings into drawers of your flat file cabinet Organize by project. One project per drawer. Label it “2026-Plant A-Construction Plans.” A0 drawings laid flat, maximum 200 sheets per stack. Put thin kraft paper between sheets to prevent abrasion. For better organization, use project codes that match your drawing numbering system.

Step 5: Environmental control for blueprint storage Humidity 45-65% is ideal for drawing cabinet storage. Too dry makes drawings brittle, too wet causes mold. Put a hygrometer in the room and check weekly. Archives should use dehumidifiers. In southern rainy season, humidity reaches 90%—AC alone isn’t enough for proper blueprint storage. Temperature should stay between 18-25°C.

4. Common Blueprint Storage Mistakes

• Rolling them up: A0 drawing stored rolled in a drawing cabinet for a year will never lay flat again. This is the dealbreaker for any flat file cabinet—flat storage only. Once the paper fiber sets in a rolled position, it’s permanent
• Overloading drawers: Exceed capacity (30-50kg per drawer) and the slides break. Repairing ball bearing slides costs more than a new flat file cabinet. Distribute weight evenly across drawers
• Mixing drawing sizes: Storing A0 and A4 in the same drawer makes finding drawings three times slower. The team will complain every day. Use separate drawers or separate drawing cabinets for different sizes
• No desiccant: At 80% humidity in rainy season, drawings mold in two months. Southern clients especially need to pay attention. Put silica gel packs in each drawer
• Cabinet too close to wall: Leave 10cm ventilation gap. Moisture doesn’t escape and the back panel rusts. This is especially critical for steel flat file cabinets in humid climates
• No drawer dividers: All drawings stacked together means searching through hundreds of sheets. Use cardboard or plastic dividers between project batches
